2019 BH ATOM LYNX 5.5 ER809,MEDIUM 36V/500Wh BH 1E-36V DRIVE, TS System

Code ER809-M
Description 2019 BH ATOM LYNX 5.5
ER809,MEDIUM 36V/500Wh
BH 1E-36V DRIVE, TS System

Specifications

  • FRAME140 mm Full Suspension Alloy 27,5"+
  • REAR SHOCKRock Shox Deluxe Debonair
  • FORKSR Suntour XCR34 Air 130mm 15QR
  • STEMBH A-Head
  • HEADSETTapered
  • SHIFT LEVERSShimano Deore
  • REAR DERAILLEURShimano Deore 10sp
  • FRONT DERAILLEUR-
  • CRANK SETFSA 36T
  • BB SET-
  • CASSETESunrace CSMS2 10sp (11-40T)
  • CHAINKMC X10
  • FRONT BRAKEShimano MT201 180mm
  • REAR BRAKEShimano MT201 180mm
  • WHEELSETAlexrims Volar 3.0 TR
  • TIRESSchwalbe Nobby Nic 27,5PLUSx2,8
  • HUBSBH
  • SPOKESStainless Steel
  • SADDLESelle Royal Seta S1
  • SEAT CLAMPQuick Release
  • SEATPOSTAlloy 31,6
  • HANDLEBARBH MTB Alloy Riser 780mm
  • GRIPSBH Perform w/ ringlock
  • PEDALS-
  • CHAINSTAY PROTECTORIntegrated
  • SYSTEMTS System
  • BATTERY500Wh
  • MOTORBH 1E-36V
  • AUTONOMYUp to 105 Km
  • DISPLAYColored Center LCD
  • UPGRADE KIT (NOT INCLUDED)GPS Tracker
    Winter Battery Cover
    Light cable

Which Is My Bike Size?

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. The best way to find your perfect fit is to consult our BH Bikes Size Fit.

Rider

Height

SM

153.0 - 161.0 cm

MD

164.0 - 177.0 cm

LA

174.0 - 187.0 cm

XL

186.0 - 195.0 cm

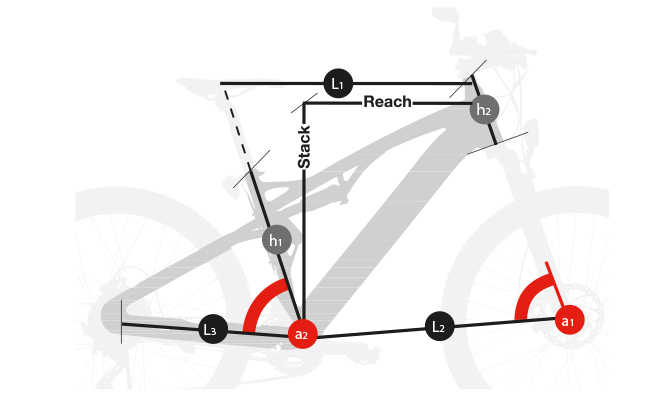

Geometry

ATOM
   MD LA
h1 Seat-Tube Length   440   480
h2 Head-Tube Length   145   150
l1 Top-Tube Length (horizontal)   608   630
l2 Chain-Stay Length   460   460
l3 Wheelbase   748   770
a1 Head-Tube Angle   67   67
a2 Seat-Tube Angle   75   75
  Stack   648   653
  Reach   430   450
